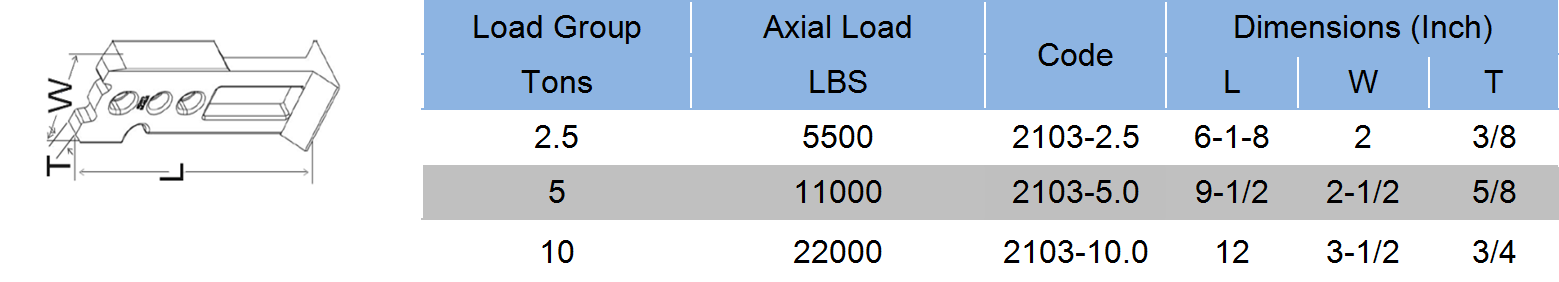

Forged Foot Erection Anchor

  • Ideal for horizontal to vertical edge lifts and the shear rotation of thin-walled units.
  • Specially designed head provides added protection against spalling, specially designed body allows for full reinforement.
  • The shear foot replaces the need for shear bar making it easier to install.
  • The full SWL can be achieved in thin slab by using a reinforcement tension bar in the second hole or when there is low concrete strength.
  • * Safety Factor is 4:1.
  • * Stainless Steel 304 (A2)/316 (A4) are available according to the request.
