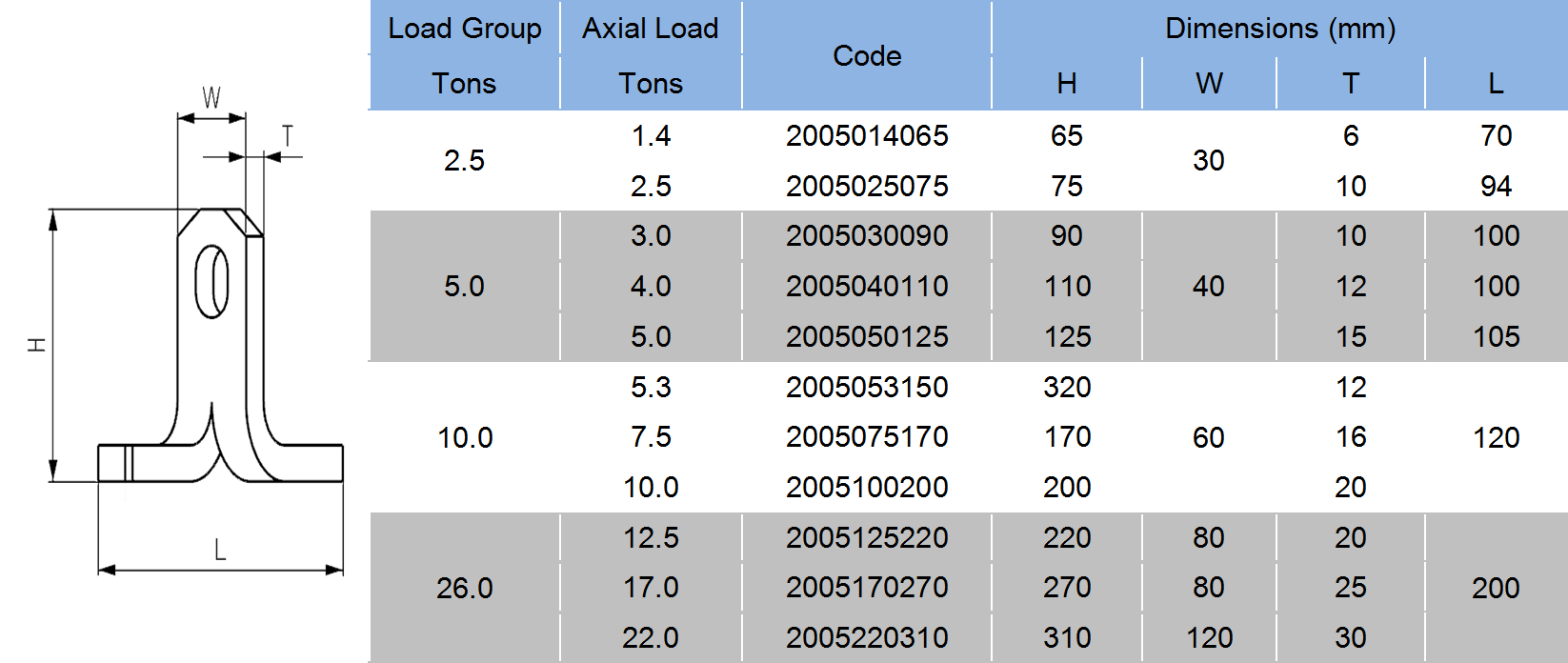

Flat Anchor
  • This Anchor is alternative to the plate anchor. The main use is in elements with a concrete strength at lifting in excess of 25N/mm2. E.G, Demoulding panels, Lifting Thin Slabs, Concrete Pipes.
  • The Angled pull reinforcement should be inserted together with this Anchor.
  • * Other Length are available by order.
  • * Safety Factor is 3:1.
  • * Stainless Steel 304 (A2)/316 (A4) are available according to the request.
  • * Surface Black /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available.
